KA左接式:KA13610P-100AFL
特征

组合高度:75mm

底座宽度:136mm

额定转速:3000RPM

最大线速度:500mm/s

垂直最大负载:18-24KG

水平最大负载:75-95KG

一般c级精度:±0.01mm

精密P级精度:±0.005mm

  • 基本信息
  • 规格尺寸
  • 配置/性能参数

    HIWIN上银单轴机器人

    HIWIN单轴机器人系利用多年来的制造技术与专业水准,配合自行研发生产的滚珠丝杆及直线导轨设计之模组,具有安装容易体积小,高精度等特点,产品种类规格多样化,适用于各类自动化设备。另可进一-步搭配HIWIN自主研发之高速度响应伺服电机及驱动器,提供您一站式完整的全模组解决方案。

    KA系列

    全球行销服务.         产品有效降噪顺畅运行(可降低抖动与噪音)           HIWIN自制核心部件:直线导轨、滚珠丝杠

    特性

    ◎ 轻量高刚性铝挤型底座     ◎ 安装与维护容易

    ◎ 组装多样化                        ◎ 客制化设计

    适用在所有自动化产业应用领域,半导体、液晶面板、家电、医疗、汽车、包装、点胶机、焊接、切割、检测.组装.送料机构.FPD产业等。

    ◆适用产业◆

    高精密产业/自动化产业/半导体产业/光伏产业新能源产业/液晶面板产业/家电产业/医疗产业包装产业/点胶机产业/镭焊产业/切割产业印刷产业/检测产业

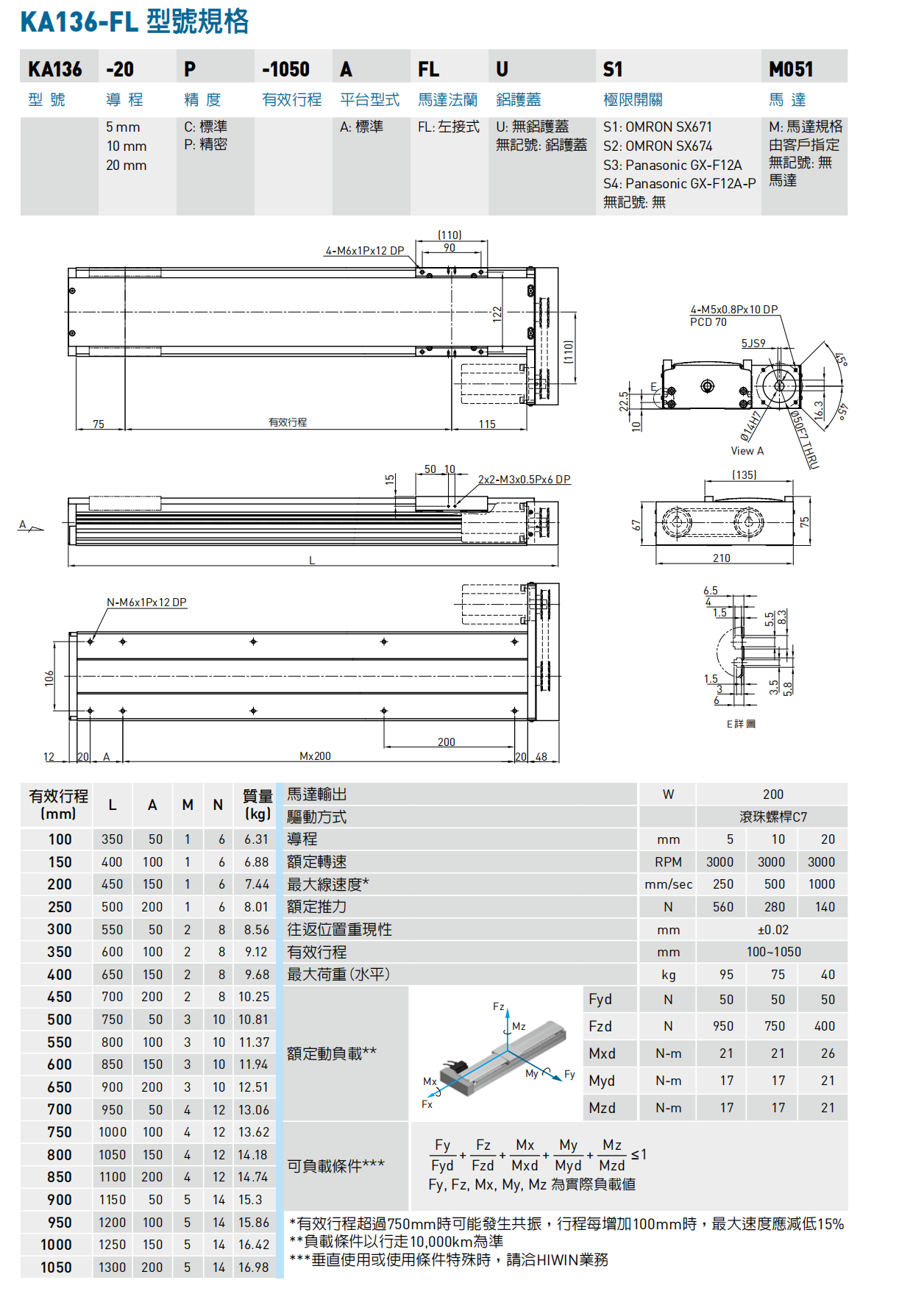

    KA136-A款-FL左接式型号
    C级精度 ±0.01mmP级精度 ±0.005mm
    05导程10导程20导程05导程10导程20导程
    KA13605C-100AFLKA13610C-100AFLKA13620C-100AFLKA13605P-100AFLKA13610P-100AFLKA13620P-100AFL
    KA13605C-150AFLKA13610C-150AFLKA13620C-150AFLKA13605P-150AFLKA13610P-150AFLKA13620P-150AFL
    KA13605C-200AFLKA13610C-200AFLKA13620C-200AFLKA13605P-200AFLKA13610P-200AFLKA13620P-200AFL
    KA13605C-250AFLKA13610C-250AFLKA13620C-250AFLKA13605P-250AFLKA13610P-250AFLKA13620P-250AFL
    KA13605C-300AFLKA13610C-300AFLKA13620C-300AFLKA13605P-300AFLKA13610P-300AFLKA13620P-300AFL
    KA13605C-350AFLKA13610C-350AFLKA13620C-350AFLKA13605P-350AFLKA13610P-350AFLKA13620P-350AFL
    KA13605C-400AFLKA13610C-400AFLKA13620C-400AFLKA13605P-400AFLKA13610P-400AFLKA13620P-400AFL
    KA13605C-450AFLKA13610C-450AFLKA13620C-450AFLKA13605P-450AFLKA13610P-450AFLKA13620P-450AFL
    KA13605C-500AFLKA13610C-500AFLKA13620C-500AFLKA13605P-500AFLKA13610P-500AFLKA13620P-500AFL
    KA13605C-550AFLKA13610C-550AFLKA13620C-550AFLKA13605P-550AFLKA13610P-550AFLKA13620P-550AFL
    KA13605C-600AFLKA13610C-600AFLKA13620C-600AFLKA13605P-600AFLKA13610P-600AFLKA13620P-600AFL
    KA13605C-650AFLKA13610C-650AFLKA13620C-650AFLKA13605P-650AFLKA13610P-650AFLKA13620P-650AFL
    KA13605C-700AFLKA13610C-700AFLKA13620C-700AFLKA13605P-700AFLKA13610P-700AFLKA13620P-700AFL
    KA13605C-750AFLKA13610C-750AFLKA13620C-750AFLKA13605P-750AFLKA13610P-750AFLKA13620P-750AFL
    KA13605C-800AFLKA13610C-800AFLKA13620C-800AFLKA13605P-800AFLKA13610P-800AFLKA13620P-800AFL
    KA13605C-850AFLKA13610C-850AFLKA13620C-850AFLKA13605P-850AFLKA13610P-850AFLKA13620P-850AFL
    KA13605C-900AFLKA13610C-900AFLKA13620C-900AFLKA13605P-900AFLKA13610P-900AFLKA13620P-900AFL
    KA13605C-950AFLKA13610C-950AFLKA13620C-950AFLKA13605P-950AFLKA13610P-950AFLKA13620P-950AFL
    KA13605C-1000AFLKA13610C-1000AFLKA13620C-1000AFLKA13605P-1000AFLKA13610P-1000AFLKA13620P-1000AFL
    KA13605C-1050AFLKA13610C-1050AFLKA13620C-1050AFLKA13605P-1050AFLKA13610P-1050AFLKA13620P-1050AFL

    額定動負載

    额定动负载方向定义如图(一)所示。型录中表列额定动负载(Fy, Fz, Mx, My, Mz)是相对于KA行走10,000 Km的寿命,为确保KA长期使用,建议儘可能在表列负载范围内使用。

    图(二)中,负载作用位置为滑台安装平面的中心。但是,实际使用时负载重心的位置未必在此中心点上,如果离开中心太远可能引起振动、过大的力矩、或动作反应迟缓。


    为了避免这些不良现象,负载重心(W)远离滑台中心(O)的距离(H)请尽可能维持在下表范围内
